New levers

[Krappy]

I got mine two weeks ago, like everyone else i had problems with the bushing. i took them to a Auto repair shop and had them drill a bigger hole in the lever they work great.

View attachment 19498

View attachment 19497



[pyrocpu]

No issues w/ the bushing on my set of levers...

Question though... are you guys sure I can't drill out the brake rod seat on the lever, instead of shortening the brake rod itself???



[bomb]

i got one from rideitmoto. the quality is good, and they don't need any modify on the piovt hole. just fit perfit with factory bush. i am happy.:thumbup:



[JonKerr]

No issues w/ the bushing on my set of levers...

Question though... are you guys sure I can't drill out the brake rod seat on the lever, instead of shortening the brake rod itself???

I wouldn't drill it out because it's not going to be a smooth cup if you do that so your braking action may feel inconsistent. That's why when you shorten it you need to make sure you round it off and smooth it out. A lot easier to do that than to try and make a smooth cup in the lever.

Shortening it isn't really a big deal at all. Just grind off a couple of millimeters and round off the edge to smooth it out and you're good to go. Also, make sure you get some grease in there too.



[pyrocpu]

Thanks Jon.

I ground off maybe 1/16" or so (one "tick" on my Stanley tape measure) and even so, it seems a bit loose--you weren't kidding about just a few mils!

About to go out and ride now... damn the hot, humid Southern weather... wished I had a bike when I was still in LA...



[columbus2382]

anyone know where to get carbon fiber levers for the fz6r or that will fit from another bike?



[rleckert]

i got one from rideitmoto. the quality is good, and they don't need any modify on the piovt hole. just fit perfit with factory bush. i am happy.:thumbup:

bomb, did you have to shorten the link between the master cylinder and the lever?



[stevet]

Other than changing the look of the stock levers what benifit or improvement do you expect?



[dart1963]

Other than changing the look of the stock levers what benifit or improvement do you expect?

Looks and shorty's! Make's it a little easier to two finger it (but I did find it will still work with four as well). You also, with these anyway, pick up an adjustable clutch lever.



[JonKerr]

I also think they feel quite a bit more solid than the stock levers. But yes, looks, 2 finger operation, and adjustability are the main reasons.



[engine47]

I wouldn't drill it out because it's not going to be a smooth cup if you do that so your braking action may feel inconsistent. That's why when you shorten it you need to make sure you round it off and smooth it out. A lot easier to do that than to try and make a smooth cup in the lever.

Shortening it isn't really a big deal at all. Just grind off a couple of millimeters and round off the edge to smooth it out and you're good to go. Also, make sure you get some grease in there too.

Anyone know if this has to be done with the more expensive sets of levers?



[k6gad]

i carefully rode about 25 miles today with the new levers. (same as yours) the front discs were only slightly warm. basically not hot to touch at all. would it be ok to say that i do not have to shave down the rod?? i can depress the lever about 1/4 of an inch before i hear the audible click. thank you for your response on this

I believe the "click" is the switch for the brake light circuit engaging.



[Uno979]

I believe the "click" is the switch for the brake light circuit engaging.

You would be correct.

I'll be installing my Pazzos this afternoon. I needed to find some grease and get back in town from work. I'll post picks when done.



[FZ1inNH]

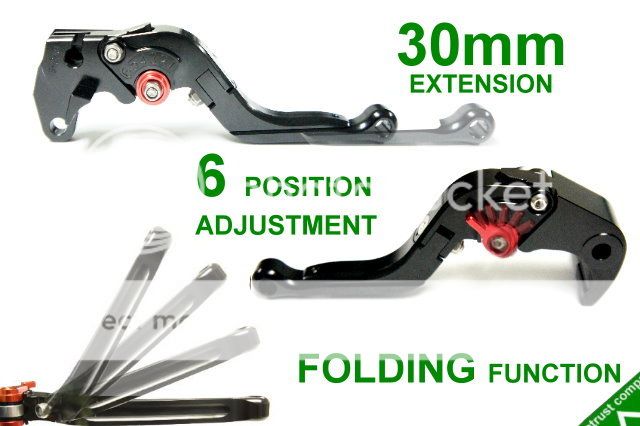

Have you all seen these levers? 7075 aluminum, folding, adjustable and length adjustable. FOLD-EXTEND LEVERS YAMAHA FZ1 FAZER 06 07 08 09: eBay Motors (item 260683030213 end time Nov-24-10 00:40:02 PST)

I emailed him and he said they would ship two sets for one shipping cost if you want to double order with another rider. The fitment chart shows the FZ6R.



[ME_with_a_B]

Have you all seen these levers? 7075 aluminum, folding, adjustable and length adjustable. FOLD-EXTEND LEVERS YAMAHA FZ1 FAZER 06 07 08 09: eBay Motors (item 260683030213 end time Nov-24-10 00:40:02 PST)

I emailed him and he said they would ship two sets for one shipping cost if you want to double order with another rider. The fitment chart shows the FZ6R.

WOW!!! Almost $30 for shipping??!! I'd hope he'd ship two pairs of levers to someone for that much!!



[Heineken]

I like! Hey B are you interested? Now I know they don't come in pink but, wanna save on shipping?)



[spider2k]

i think i'm happy with my shorties from ride-it.just tried them out for the first time today and i like how much closer the brake can be moved.

$30 shipping is a bit silly.



[Roaddawg]

Is it me or does the first one (the two finger) look like "the shocker"?!?



[99vengeur]

Is it me or does the first one (the two finger) look like "the shocker"?!?

:rof::rof::rof::rof::rof::rof:

I think the minivan is my favorite of them all! It's just hilarious! :rockon:



[Diluted]

Robert got owned! lol.
